GR80 Performance Curve
GR80 Noise curve
GR80 Performance Table
| RPM | 1000 mmAq | 2000 mmAq | ||
| m3/min | kW | m3/min | kW | |
| 850 | 2.11 | 0.63 | 1.90 | 1.22 |
| 1000 | 2.63 | 0.74 | 2.40 | 1.43 |
| 1150 | 3.18 | 0.85 | 2.95 | 1.65 |
| 1300 | 3.77 | 0.96 | 3.53 | 1.86 |
| 1450 | 4.38 | 1.07 | 4.13 | 2.08 |
| 1600 | 5.00 | 1.18 | 4.75 | 2.29 |
| 1750 | 5.64 | 1.29 | 5.39 | 2.51 |
| RPM | 3000 mmAq | 4000 mmAq | ||
| m3/min | kW | m3/min | kW | |
| 850 | 1.73 | 1.77 | 1.57 | 2.30 |
| 1000 | 2.29 | 2.09 | 2.10 | 2.71 |
| 1150 | 2.75 | 2.40 | 2.60 | 3.11 |
| 1300 | 3.31 | 2.71 | 3.12 | 3.52 |
| 1450 | 3.91 | 3.02 | 3.72 | 3.92 |
| 1600 | 4.53 | 3.34 | 4.33 | 4.33 |
| 1750 | 5.16 | 3.65 | 4.95 | 4.73 |
| RPM | 5000 mmAq | 6000 mmAq | ||
| m3/min | kW | m3/min | kW | |
| 850 | 1.43 | 2.80 | 1.36 | 3.28 |
| 1000 | 1.94 | 3.30 | 1.80 | 3.86 |
| 1150 | 2.45 | 3.79 | 2.33 | 4.44 |
| 1300 | 2.96 | 4.28 | 2.82 | 5.02 |
| 1450 | 3.55 | 4.78 | 3.39 | 5.59 |
| 1600 | 4.15 | 5.27 | 4.00 | 6.17 |
| 1750 | 4.77 | 5.77 | 4.61 | 6.75 |
| RPM | 7000 mmAq | 8000 mmAq | ||
| m3/min | kW | m3/min | kW | |
| 850 | 1.23 | 3.74 | 1.11 | 4.14 |
| 1000 | 1.73 | 4.40 | 1.61 | 4.87 |
| 1150 | 2.24 | 5.06 | 2.13 | 5.61 |
| 1300 | 2.73 | 5.72 | 2.63 | 6.34 |
| 1450 | 3.28 | 6.38 | 3.17 | 7.07 |
| 1600 | 3.86 | 7.04 | 3.74 | 7.80 |
| 1750 | 4.47 | 7.70 | 4.35 | 8.53 |
GR80 Outline Dimensions
| No. | Item | Material |
| 1 | gear box 齒輪箱 | FC250 |
| 2 | gear box 齒輪 | SCM415 |
| 3 | bearing 軸承 | SUJ2 |
| 4 | bearing case 軸承座 | FC250 |
| 5 | side cover 側蓋 | FC250 |
| 6 | oil plug 加油塞 | S45C |
| 7 | lmpeller 葉輪 | FC250 |
| 8 | eye bolt 吊環 | S45C |
| 9 | shaft seal 軸封 | S45C |
| 10 | oil box 油箱 | FC250 |
| 11 | oil splash 甩油片 | SS400 |
| 12 | oil seal case 油封座 | FC250 |
| 13 | screw nut 螺帽 | SS400 |
| 14 | pulley 皮帶輪 | FC250 |
| 15 | oil seal case 油封 | NBR |
| 16 | oil gauge 油鏡 | S45C |
| 17 | oil drainer 洩油塞 | S45C |
| 18 | cylinder 汽缸 | FC250 |
| 19 | shaft 軸 | SCM440 |
| 20 | oil gauge 油鏡 | S45C |
| 21 | oil drainer 洩油塞 | S45C |
| 22 | oil splash 甩油片 | SS400 |

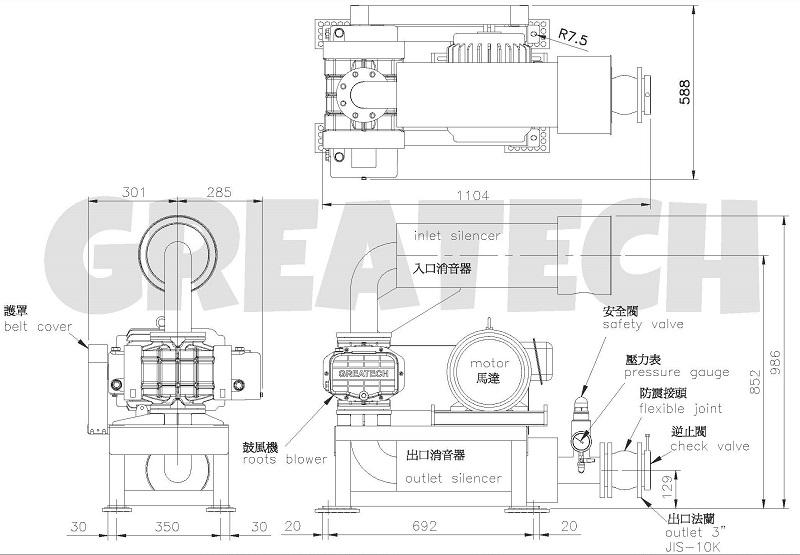

GR80 Outline Dimension
