GR200 Performance Curve
GR200 Noise curve
GR200 Performance Table
| RPM | 1000 mmAq | 2000 mmAq | ||
| m3/min | kW | m3/min | kW | |
| 750 | 15.58 | 3.87 | 14.99 | 7.5 |
| 900 | 18.52 | 4.55 | 17.89 | 8.82 |
| 1050 | 21.51 | 5.23 | 20.88 | 10.14 |
| 1200 | 24.56 | 5.91 | 23.96 | 11.46 |
| 1350 | 27.66 | 6.6 | 27.12 | 12.79 |
| 1500 | 30.83 | 7.28 | 30.38 | 14.11 |
| 1650 | 34.06 | 7.96 | 33.72 | 15.43 |
| RPM | 3000 mmAq | 4000 mmAq | ||
| m3/min | kW | m3/min | kW | |
| 750 | 14.41 | 10.5 | 13.85 | 13.62 |
| 900 | 17.29 | 12.35 | 16.7 | 16.03 |
| 1050 | 20.27 | 14.21 | 19.68 | 18.43 |
| 1200 | 23.37 | 16.06 | 22.8 | 20.84 |
| 1350 | 26.59 | 17.91 | 26.07 | 23.24 |
| 1500 | 29.93 | 19.77 | 29.49 | 25.64 |
| 1650 | 33.39 | 21.62 | 33.06 | 28.05 |
| RPM | 5000 mmAq | 6000 mmAq | ||
| m3/min | kW | m3/min | kW | |
| 750 | 13.32 | 15.93 | 12.81 | 18.65 |
| 900 | 16.14 | 18.74 | 15.59 | 21.94 |
| 1050 | 19.11 | 21.55 | 18.55 | 25.23 |
| 1200 | 22.25 | 24.36 | 21.71 | 28.52 |
| 1350 | 25.56 | 27.17 | 25.06 | 31.82 |
| 1500 | 29.05 | 29.98 | 28.62 | 35.11 |
| 1650 | 32.73 | 32.8 | 32.41 | 38.4 |
| RPM | 7000 mmAq | 8000 mmAq | ||
| m3/min | kW | m3/min | kW | |
| 750 | 12.32 | 21.25 | 11.84 | 23.06 |
| 900 | 15.06 | 25.01 | 14.56 | 27.13 |
| 1050 | 18.01 | 28.76 | 17.49 | 31.2 |
| 1200 | 21.18 | 32.51 | 20.66 | 35.27 |
| 1350 | 24.57 | 36.26 | 24.08 | 39.34 |
| 1500 | 28.2 | 40.01 | 27.78 | 43.41 |
| 1650 | 32.09 | 43.76 | 31.77 | 47.48 |
GR200 Outline Dimensions
| No. | Item | Material |
| 1 | gear box 齒輪箱 | FC250 |
| 2 | gear box 齒輪 | SCM415 |
| 3 | bearing 軸承 | SUJ2 |
| 4 | bearing case 軸承座 | FC250 |
| 5 | side cover 側蓋 | FC250 |
| 6 | oil plug 加油塞 | S45C |
| 7 | lmpeller 葉輪 | FC250 |
| 8 | eye bolt 吊環 | S45C |
| 9 | shaft seal 軸封 | S45C |
| 10 | oil box 油箱 | FC250 |
| 11 | oil splash 甩油片 | SS400 |
| 12 | oil seal case 油封座 | FC250 |
| 13 | screw nut 螺帽 | SS400 |
| 14 | pulley 皮帶輪 | FC250 |
| 15 | oil seal case 油封 | NBR |
| 16 | oil gauge 油鏡 | S45C |
| 17 | oil drainer 洩油塞 | S45C |
| 18 | cylinder 汽缸 | FC250 |
| 19 | shaft 軸 | SCM440 |
| 20 | oil gauge 油鏡 | S45C |
| 21 | oil drainer 洩油塞 | S45C |
| 22 | oil splash 甩油片 | SS400 |

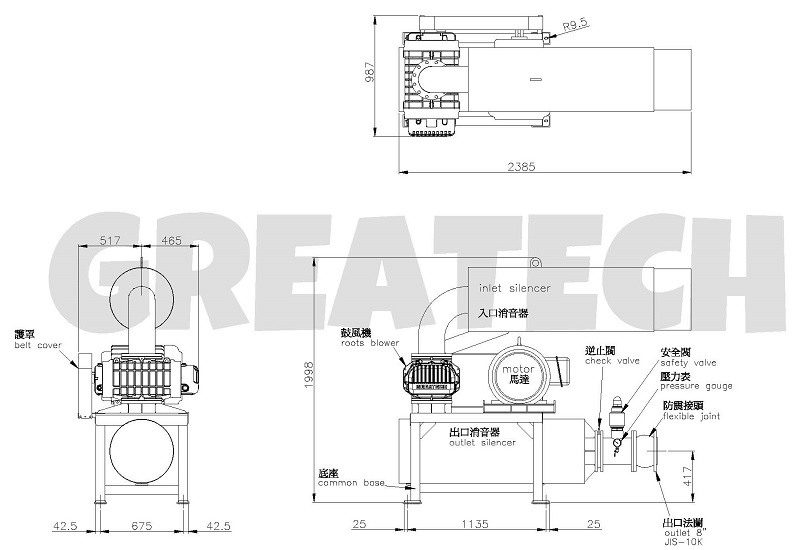

GR200 Outline Dimension
